customized up to 380 kW & 800 VDC

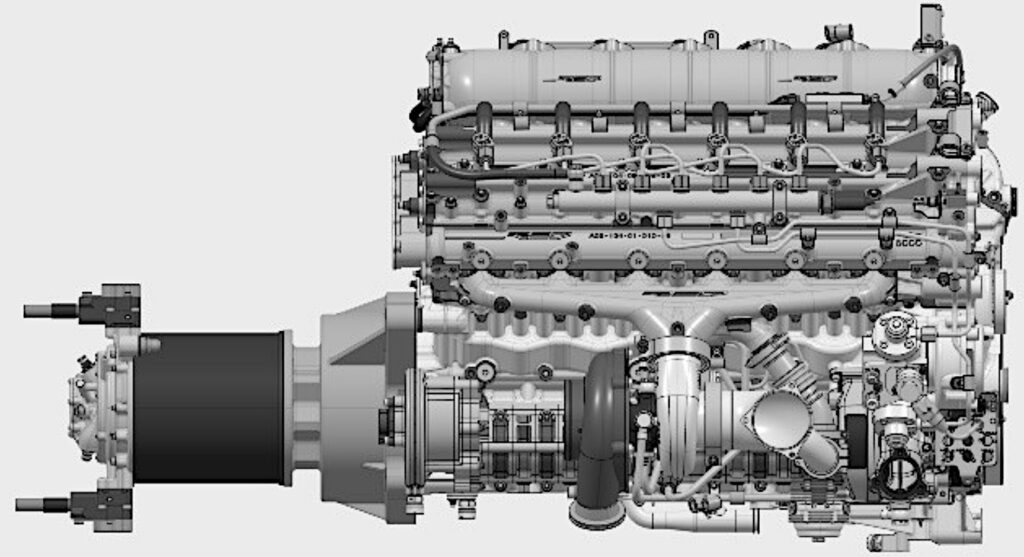

RED A03 Hybrid Generator Units
RED A03 Hybrid Generator Units are derivatives of the proven A03 engine type providing maximum versatility for different Serial Hybrid propulsion solutions – such as Hybrid Electric Aircraft, eVTOL or Auxiliary Power Unit (APU) applications. RED A03 Hybrid Generator Units are purpose-designed for aviation, to deliver the highest safety level combined with a compact and weight-optimized design. The RED A03 engine type is a lightweight, all-aluminium, compression-ignition, internal combustion 12-cylinder engines, with two six-cylinder banks capable of independent operation.
- Hybrid Electric / Genset
- eVTOL & electric Aircraft
- Auxiliary Power Unit APU
- Diesel cycle engine, designed to operate with Jet Fuel types & SAF
- High Safety Level
- FADEC – DAL-B
A03 type design is certified in compliance to EASA CS-E / TYPECERTIFICATE-DATA-SHEET No.: E.150.
- FADEC & electric looms
- Engine starter
- Exhaust system and turbochargers
- Generator & Invertor with integrated cooling system
| ENGINE DESCRIPTION | |
| NUMBER OF CYL. + ARRANGEMENT | V-12 |
| FUEL TYPE | JET FUEL |
| DISPLACEMENT | 4 |
| BORE X STROKE | 3.38” X 3.46” |
| VALVES PER CYLINDER | 4 |
| TURBOCHARGER | SINGLE STAGE |
| FUEL SYSTEM | COMMON RAIL |
| ELECTRICAL SYSTEM | 2 X 28 V 3.5 KW ALTERNATOR |
| REDUCTION GEAR | 1:1.88 |
| DRY MASS* | 800 LBS |
| FADEC | DESIGN ASSURANCE LEVEL B CERTIFIED IN COMPLIANCE TO RTCA DO-254, DO-178B & DO-160G |
| DIMENSIONS | 33.46 x 29.53 x 43.86 inch ( Width x Height x Length ) |
*According to type design configuration.
